使用邻接表模型在MySQL中管理分层数据


简介:在本教程中,您将学习如何使用邻接表模型在MySQL中管理分层数据。


邻接表模型简介

分层数据无处不在。它可以是博客类别,产品层次结构或组织结构。

在MySQL中有许多方法可以管理分层数据,而邻接表模型可能是最简单的解决方案。由于其简单性,邻接列表模型是开发人员和数据库管理员非常喜欢的选择。

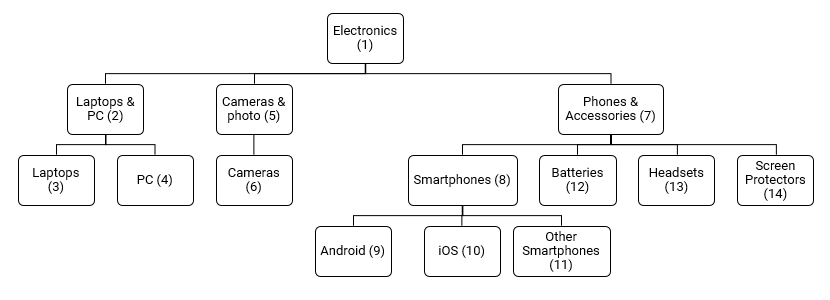

在邻接列表模型中,每个节点都有一个指向其父节点的指针。顶层节点没有父节点。请参阅以下电子产品类别:

在使用邻接表模型之前,您应该熟悉一些术语:

  • Electronics是顶级节点或根节点。
  • Laptops, Cameras & photo, Phones & Accessories节点是Electronics节点的子代。反之亦然,电子节点Laptops, Cameras & photo, Phones & Accessories是节点的父节点。
  • 叶子节点是没有孩子如节点Laptops,PC,Android,iOS,等,而非叶节点是具有至少一个子代。
  • 节点的子孙称为子孙。节点的父母,祖父母等也称为祖先。

为了模拟这一类的树,我们可以创建一个命名的表category有三列:id,title,和parent_id如下:

CREATE TABLE category (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  title varchar(255) NOT NULL,
  parent_id int(10) unsigned DEFAULT NULL,
  PRIMARY KEY (id),
  FOREIGN KEY (parent_id) REFERENCES category (id)
    ON DELETE CASCADE ON UPDATE CASCADE
);

表中的每一行都是该id列标识的树中的一个节点。parent_id列是category表本身的外键。它的作用类似于指向该id列的指针  。

INSERT INTO category(title,parent_id)
VALUES('Electronics',NULL);

要插入非根节点,只需将其设置  parent_id为其父节点的ID。例如,所述parent_idLaptop & PC,Cameras & Photos和Phone & Accessories节点被设置为1:

INSERT INTO category(title,parent_id)
VALUES('Laptops & PC',1);

INSERT INTO category(title,parent_id)
VALUES('Laptops',2);
INSERT INTO category(title,parent_id)
VALUES('PC',2);

INSERT INTO category(title,parent_id)
VALUES('Cameras & photo',1);
INSERT INTO category(title,parent_id)
VALUES('Camera',5);

INSERT INTO category(title,parent_id)
VALUES('Phones & Accessories',1);
INSERT INTO category(title,parent_id)
VALUES('Smartphones',7);

INSERT INTO category(title,parent_id)
VALUES('Android',8);
INSERT INTO category(title,parent_id)
VALUES('iOS',8);
INSERT INTO category(title,parent_id)
VALUES('Other Smartphones',8);

INSERT INTO category(title,parent_id)
VALUES('Batteries',7);
INSERT INTO category(title,parent_id)
VALUES('Headsets',7);
INSERT INTO category(title,parent_id)
VALUES('Screen Protectors',7);

寻找根节点

根节点是没有父节点的节点。换句话说,它parent_id是NULL:

SELECT
    id, title
FROM
    category
WHERE
    parent_id IS NULL;

运行结果:

+----+-------------+
| id | title       |
+----+-------------+
|  1 | Electronics |
+----+-------------+
1 row in set (0.00 sec)



查找节点的直接子代

以下查询获取根节点的直接子代:

SELECT
    id, title
FROM
    category
WHERE
    parent_id = 1;

运行结果:

+----+----------------------+
| id | title                |
+----+----------------------+
|  2 | Laptops & PC         |
|  5 | Cameras & photo      |
|  7 | Phones & Accessories |
+----+----------------------+
3 rows in set (0.00 sec)



查找叶节点

叶节点是没有子节点的节点。

SELECT
    c1.id, c1.title
FROM
    category c1
        LEFT JOIN
    category c2 ON c2.parent_id = c1.id
WHERE
    c2.id IS NULL;

运行结果:

+----+-------------------+
| id | title             |
+----+-------------------+
|  3 | Laptops           |
|  4 | PC                |
|  6 | Camera            |
|  9 | Android           |
| 10 | iOS               |
| 11 | Other Smartphones |
| 12 | Batteries         |
| 13 | Headsets          |
| 14 | Screen Protectors |
+----+-------------------+
9 rows in set (0.00 sec)

完整查询整棵树

以下递归公用表表达式(CTE)检索整个类别树。请注意,自MySQL 8.0起,CTE功能已可用

WITH RECURSIVE category_path (id, title, path) AS
(
  SELECT id, title, title as path
    FROM category
    WHERE parent_id IS NULL
  UNION ALL
  SELECT c.id, c.title, CONCAT(cp.path, ' > ', c.title)
    FROM category_path AS cp JOIN category AS c
      ON cp.id = c.parent_id
)
SELECT * FROM category_path
ORDER BY path;

运行结果:

+------+----------------------+----------------------------------------------------------------------+
| id   | title                | path                                                                 |
+------+----------------------+----------------------------------------------------------------------+
|    1 | Electronics          | Electronics                                                          |
|    5 | Cameras & photo      | Electronics > Cameras & photo                                        |
|    6 | Camera               | Electronics > Cameras & photo > Camera                               |
|    2 | Laptops & PC         | Electronics > Laptops & PC                                           |
|    3 | Laptops              | Electronics > Laptops & PC > Laptops                                 |
|    4 | PC                   | Electronics > Laptops & PC > PC                                      |
|    7 | Phones & Accessories | Electronics > Phones & Accessories                                   |
|   12 | Batteries            | Electronics > Phones & Accessories > Batteries                       |
|   13 | Headsets             | Electronics > Phones & Accessories > Headsets                        |
|   14 | Screen Protectors    | Electronics > Phones & Accessories > Screen Protectors               |
|    8 | Smartphones          | Electronics > Phones & Accessories > Smartphones                     |
|    9 | Android              | Electronics > Phones & Accessories > Smartphones > Android           |
|   10 | iOS                  | Electronics > Phones & Accessories > Smartphones > iOS               |
|   11 | Other Smartphones    | Electronics > Phones & Accessories > Smartphones > Other Smartphones |
+------+----------------------+----------------------------------------------------------------------+
14 rows in set (0.00 sec)

查询子树

下面的查询得到Phone & Accessories的子树,其id为7。

WITH RECURSIVE category_path (id, title, path) AS
(
  SELECT id, title, title as path
    FROM category
    WHERE parent_id = 7
  UNION ALL
  SELECT c.id, c.title, CONCAT(cp.path, ' > ', c.title)
    FROM category_path AS cp JOIN category AS c
      ON cp.id = c.parent_id
)
SELECT * FROM category_path
ORDER BY path;

运行结果:

+------+-------------------+---------------------------------+
| id   | title             | path                            |
+------+-------------------+---------------------------------+
|   12 | Batteries         | Batteries                       |
|   13 | Headsets          | Headsets                        |
|   14 | Screen Protectors | Screen Protectors               |
|    8 | Smartphones       | Smartphones                     |
|    9 | Android           | Smartphones > Android           |
|   10 | iOS               | Smartphones > iOS               |
|   11 | Other Smartphones | Smartphones > Other Smartphones |
+------+-------------------+---------------------------------+
7 rows in set (0.00 sec)

查询单个路径

要查询从下到上的单个路径,例如从iOS到Electronics,请使用以下语句:

WITH RECURSIVE category_path (id, title, parent_id) AS
(
  SELECT id, title, parent_id
    FROM category
    WHERE id = 10 -- child node
  UNION ALL
  SELECT c.id, c.title, c.parent_id
    FROM category_path AS cp JOIN category AS c
      ON cp.parent_id = c.id
)
SELECT * FROM category_path;

运行结果:

+------+----------------------+-----------+
| id   | title                | parent_id |
+------+----------------------+-----------+
|   10 | iOS                  |         8 |
|    8 | Smartphones          |         7 |
|    7 | Phones & Accessories |         1 |
|    1 | Electronics          |      NULL |
+------+----------------------+-----------+
4 rows in set (0.00 sec)



计算每个节点的级别

假设根节点的级别为0,下面的每个节点的级别等于其父节点的级别加1。

WITH RECURSIVE category_path (id, title, lvl) AS
(
  SELECT id, title, 0 lvl
    FROM category
    WHERE parent_id IS NULL
  UNION ALL
  SELECT c.id, c.title,cp.lvl + 1
    FROM category_path AS cp JOIN category AS c
      ON cp.id = c.parent_id
)
SELECT * FROM category_path
ORDER BY lvl;

运行结果:

+------+----------------------+------+
| id   | title                | lvl  |
+------+----------------------+------+
|    1 | Electronics          |    0 |
|    2 | Laptops & PC         |    1 |
|    5 | Cameras & photo      |    1 |
|    7 | Phones & Accessories |    1 |
|    3 | Laptops              |    2 |
|    4 | PC                   |    2 |
|    6 | Camera               |    2 |
|    8 | Smartphones          |    2 |
|   12 | Batteries            |    2 |
|   13 | Headsets             |    2 |
|   14 | Screen Protectors    |    2 |
|    9 | Android              |    3 |
|   10 | iOS                  |    3 |
|   11 | Other Smartphones    |    3 |
+------+----------------------+------+
14 rows in set (0.00 sec)

删除节点及其后代

要删除节点及其后代,只需删除节点本身,所有后代将通过DELETE CASCADE外键约束的来自动删除。

例如,要删除Laptops & PC节点及其子女(Laptops,PC),可以使用如下语句:

DELETE FROM category
WHERE
    id = 2;

删除节点并提升其后代

删除非叶子节点并提升其后代:

  • 首先,parent_id将节点的直接子节点的更新为id新的父节点的。
  • 然后,删除该节点。

例如,要删除Smartphones节点并提升其子节点(例如Android,)iOS,请执行以下操作Other Smartphones:

首先,更新的parent_id所有直属子项Smartphones:

UPDATE category
SET
    parent_id = 7 -- Phones & Accessories
WHERE
    parent_id = 5; -- Smartphones

其次,删除Smartphones节点:

DELETE FROM category
WHERE
    id = 8;

这两个语句都应该包装在一个事务中:

BEGIN;

UPDATE category
SET
    parent_id=7
WHERE
    parent_id = 5;

DELETE FROM category
WHERE
    id = 8;

COMMIT;



移动子树

要移动子树,刚更新的parent_id子树的顶部节点。例如,要将Cameras & photo用作的子代Phone and Accessories,请使用以下语句:

UPDATE category
SET
    parent_id = 7
WHERE
    id = 5;

在本教程中,您学习了如何使用邻接表模型来管理MySQL中的分层数据。
